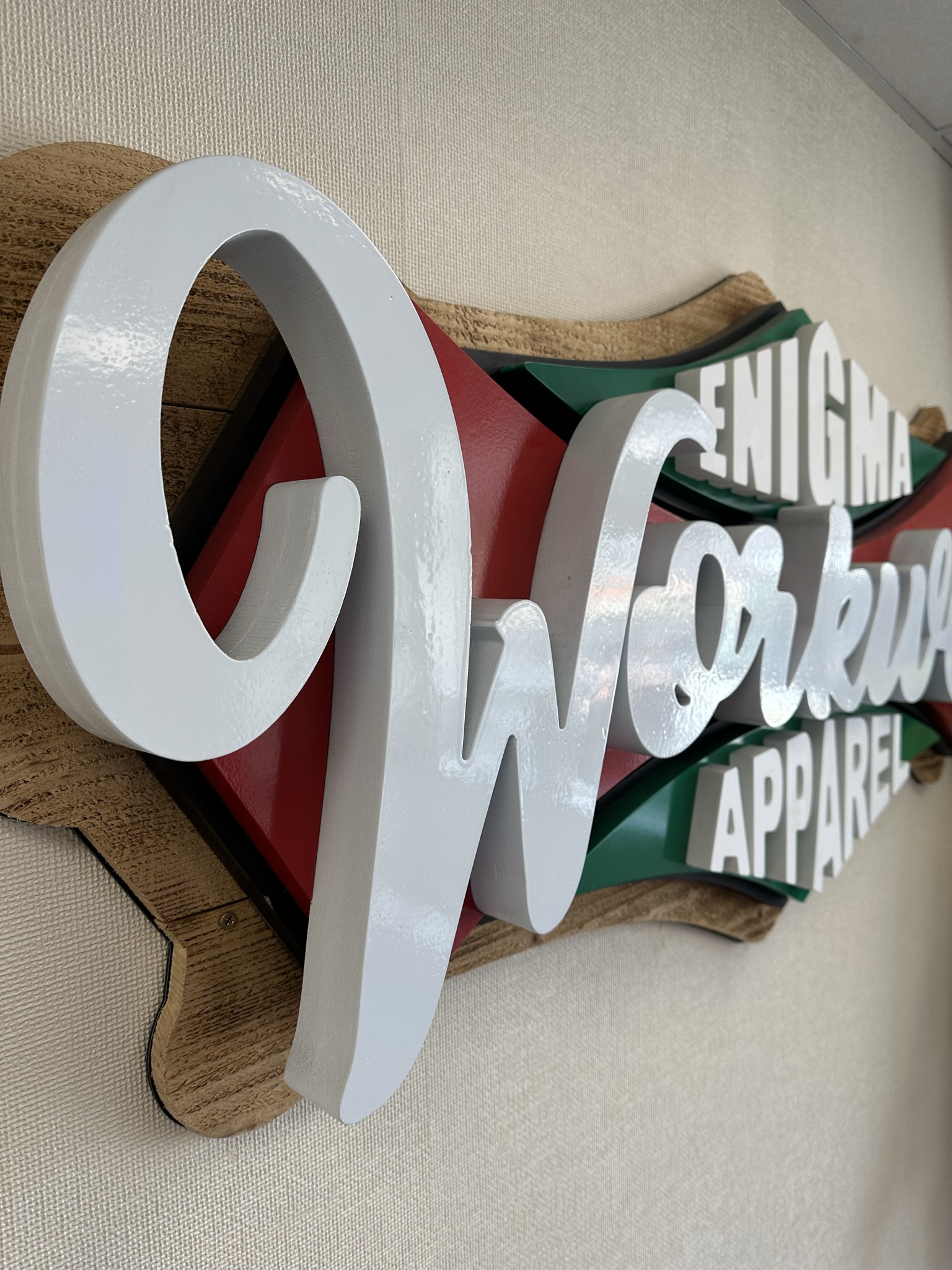

Non-illuminated letters
Solid-looking faces and deep returns give lettering definition through colour, highlights and shadow. Powder-coated aluminium can match your brand colour; metal finishes can bring a different character.
Home / 3D & built-up letters
Designed, made & installed in Southport
3D & built-up letters in Southport
Give your name depth, shape and presence. From powder-coated aluminium logos to illuminated stainless steel lettering, we create signs that bring your branding into the building, shopfront or interior.
Fabricated built-up letters, also called channel letters, have a face and deeper sides called returns. Choose non-illuminated lettering, a lit face or a halo glow for shop signs, business premises and interiors.
The right construction. The right effect.
Non-illuminated, face-lit or halo-lit letters?
The shape of the letter, its finish and the way it is lit all change how a sign feels. Built-up lettering can work as individual letters on a wall, as part of a sign tray or totem, or suspended within an interior.
Rim and return describes the construction; face illumination and halo illumination describe the lighting effect. We’ll help select a combination that suits the design, location and viewing distance.
Materials, construction & installation
Choosing 3D lettering for your sign
Start with how the sign needs to be read: from the pavement, across a car park or inside a reception. Letter height, stroke width, spacing and contrast matter alongside the depth and lighting.
Rim and return, rimless or solid letters?
Rim and return lettering has a visible retaining edge around the face. Rimless construction removes that visible front border. “3D letters” is a wider description that can also include solid letters cut or routed from thick material, so the construction should always be specified.
RA Bar’s routed Foamex letters with painted faces are a solid-material 3D example. These are design options to discuss with your sign maker. The size and shape of the artwork determine what can be made, particularly for fine script, narrow strokes and small logos.
Wall, fascia, tray or totem mounting
Individual letters can be fitted to a wall or mounted onto a backing panel or sign tray. A panel can bring the letters together and help accommodate wiring. The photographs also show lettering on a freestanding totem and suspended within an entrance.
For halo lighting, the wall’s colour, texture and the space behind the letters affect the glow. Share a photograph of the proposed location so the mounting and lighting can be considered together.
Plan the power and access
Illuminated letters need a power supply and a planned cable route. Consider where the LED driver can be positioned and reached for future servicing, as well as access to the sign itself.
For a high-level fascia or building sign, include the mounting height and any access restrictions in your enquiry. Exterior exposure and the fixing surface also affect the specification.
What determines the price?
Letter count, overall size, font complexity, return depth, material, finish and lighting all influence the work involved. Mounting panels, power arrangements and installation access affect the complete project too.
Send vector artwork such as an SVG, EPS or editable PDF if available, approximate dimensions and a location photograph. A screenshot or sketch is useful for an initial discussion if finished artwork is not ready.
Hospitality lettering
Apiary — gold, depth and light
Apiary’s flowing script becomes a three-dimensional sign in gold stainless steel. Rim and return construction combines the metal outline and sides with an illuminated face.
Suspended within the entrance, the lettering carries the venue’s name into the interior and complements the surrounding finishes.
Completed sign

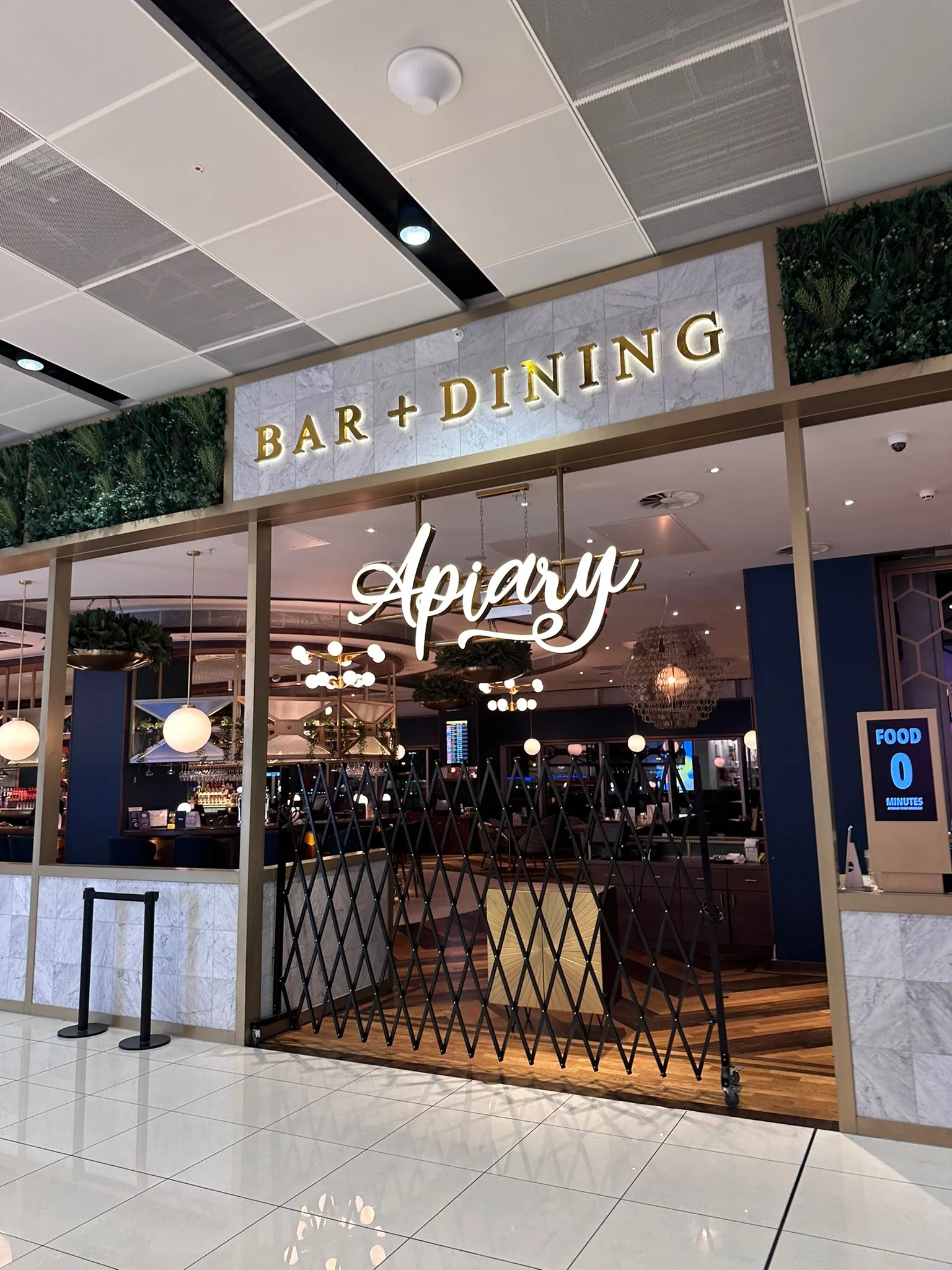

Apiary — the entrance sign
The flowing Apiary lettering sits below the separate BAR + DINING sign, bringing the venue’s name into the entrance.
Illuminated lettering

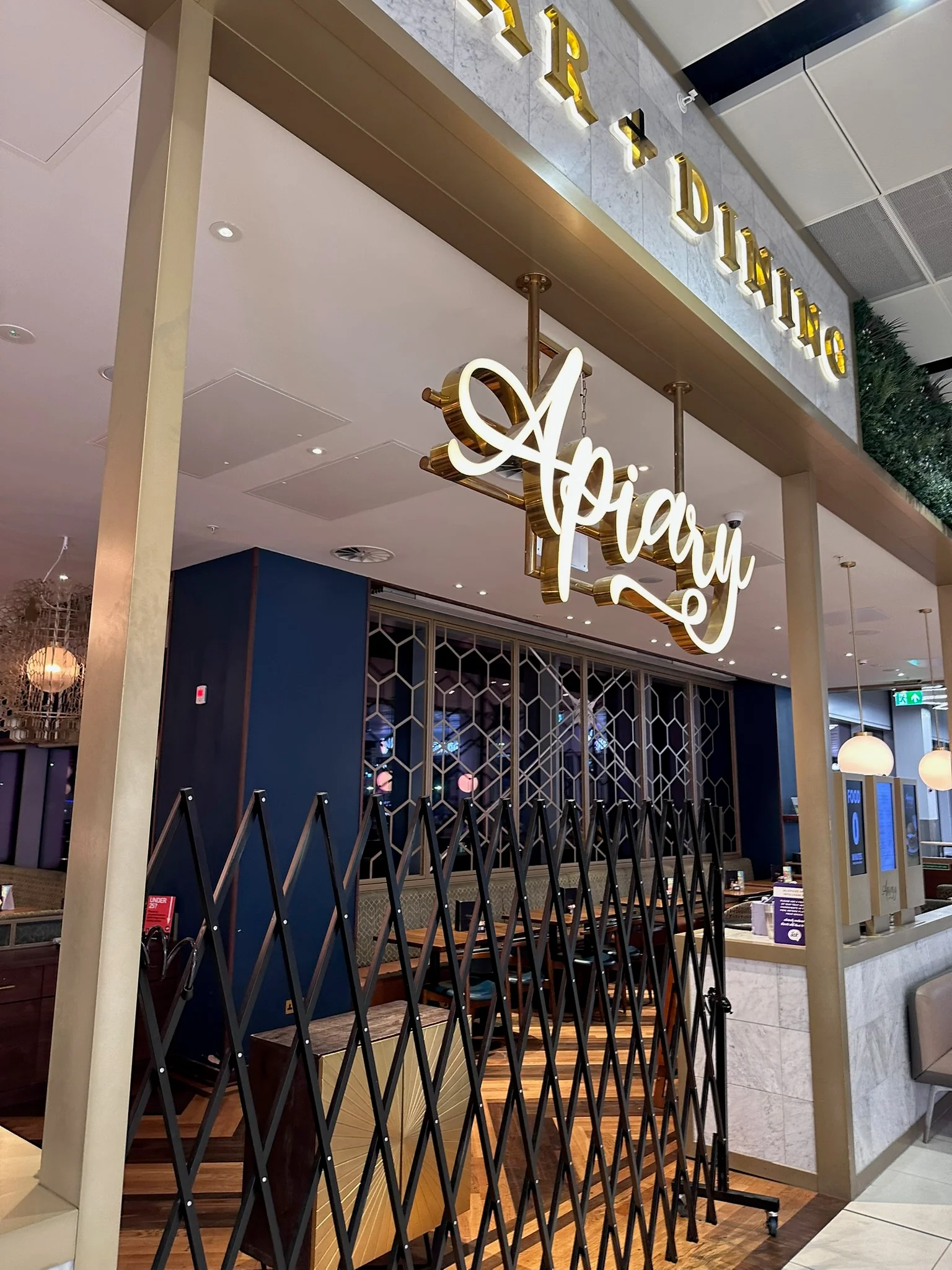

Apiary — illuminated script lettering
Gold stainless steel rim and return letters with internal illumination, suspended within the entrance.
Freestanding signage
BWD — 3D lettering on a totem
Barron Wood Distribution’s totem uses powder-coated aluminium 3D letters for the BWD logo. The blue faces and returns stand proud of the white upper panel.
These BWD letters are non-illuminated. Their depth and contrasting colour give the logo definition in daylight, while the lower panels carry the company name and head office details.
Non-illuminated letters

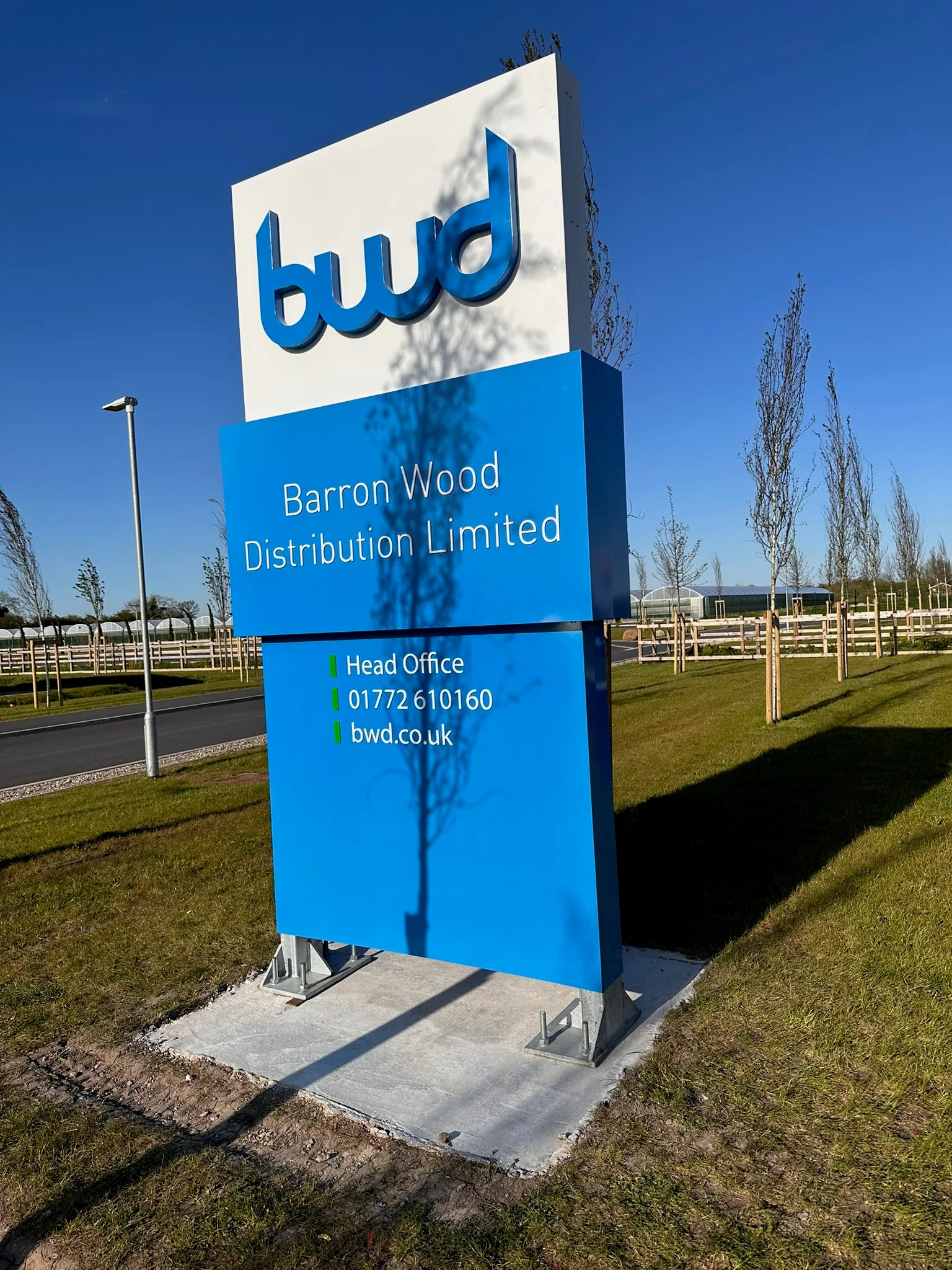

BWD — completed totem
Powder-coated aluminium 3D BWD letters on the upper panel of a freestanding totem. The BWD letters are non-illuminated.
Installation

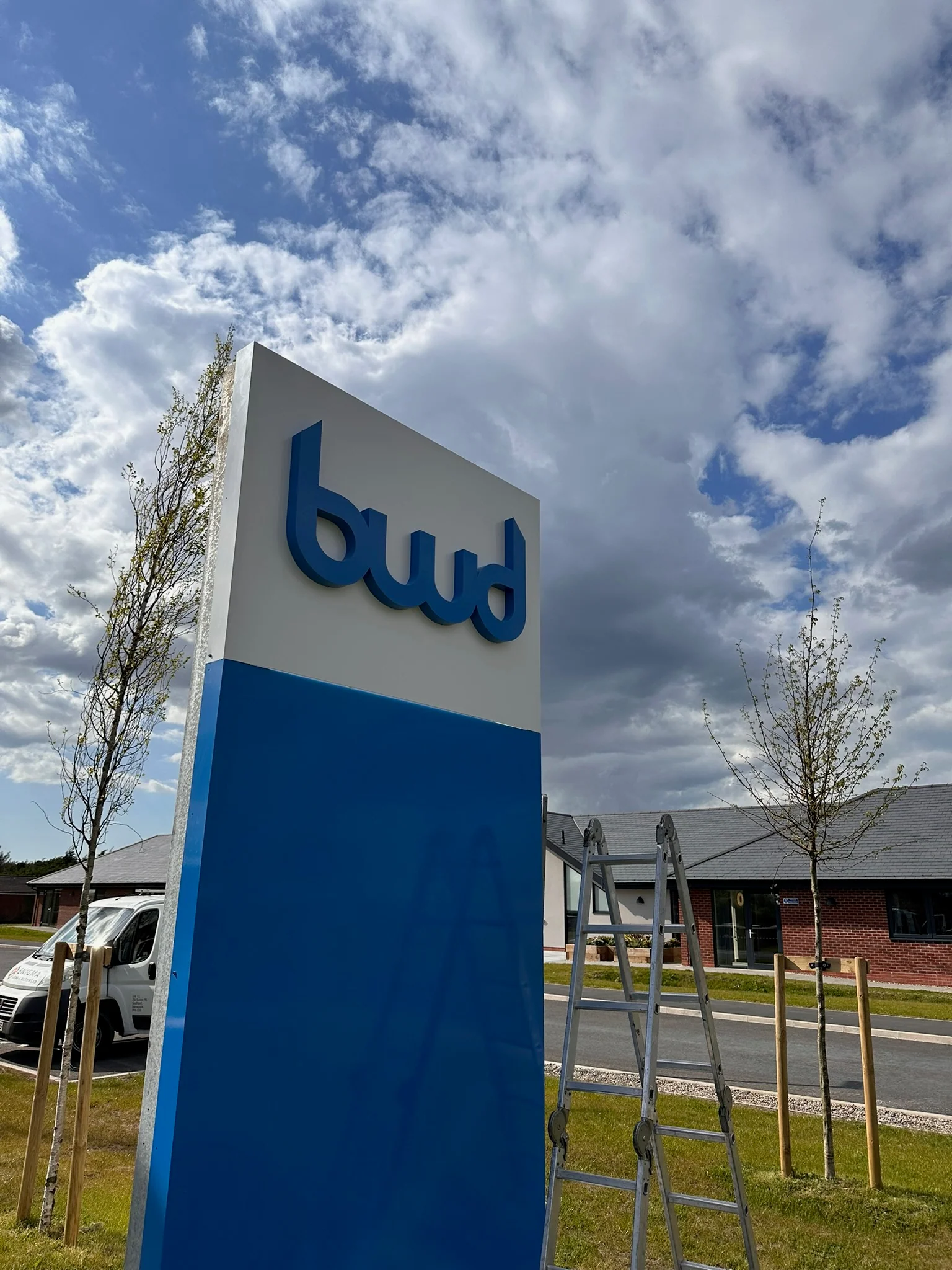

BWD — installation in progress
The 3D BWD letters are fitted to the upper panel before the lower information panels are completed.
See more BWD views
Completed sign

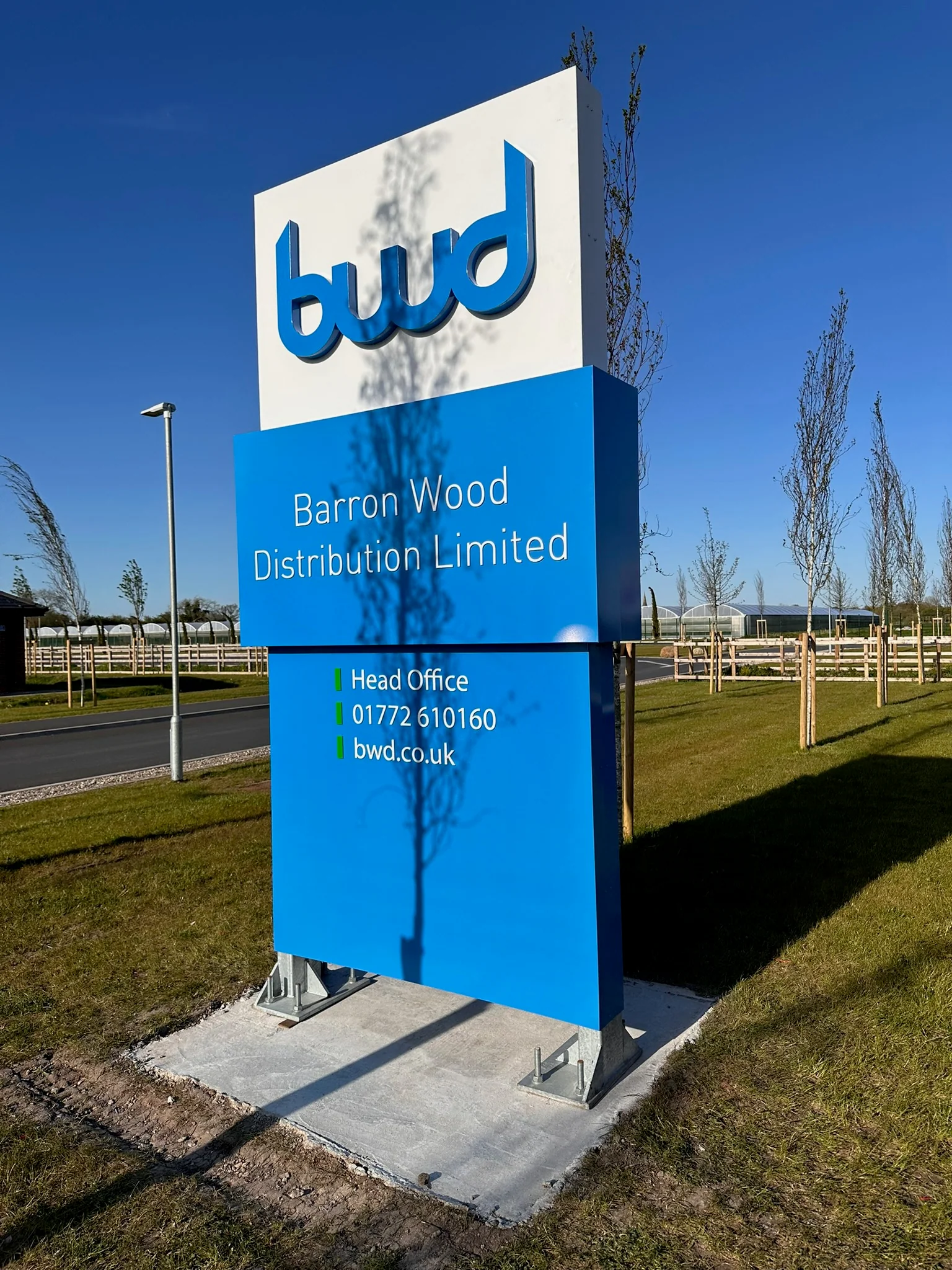

BWD — lettering and returns
An angled view shows the depth of the blue aluminium letters against the white panel.
Completed sign

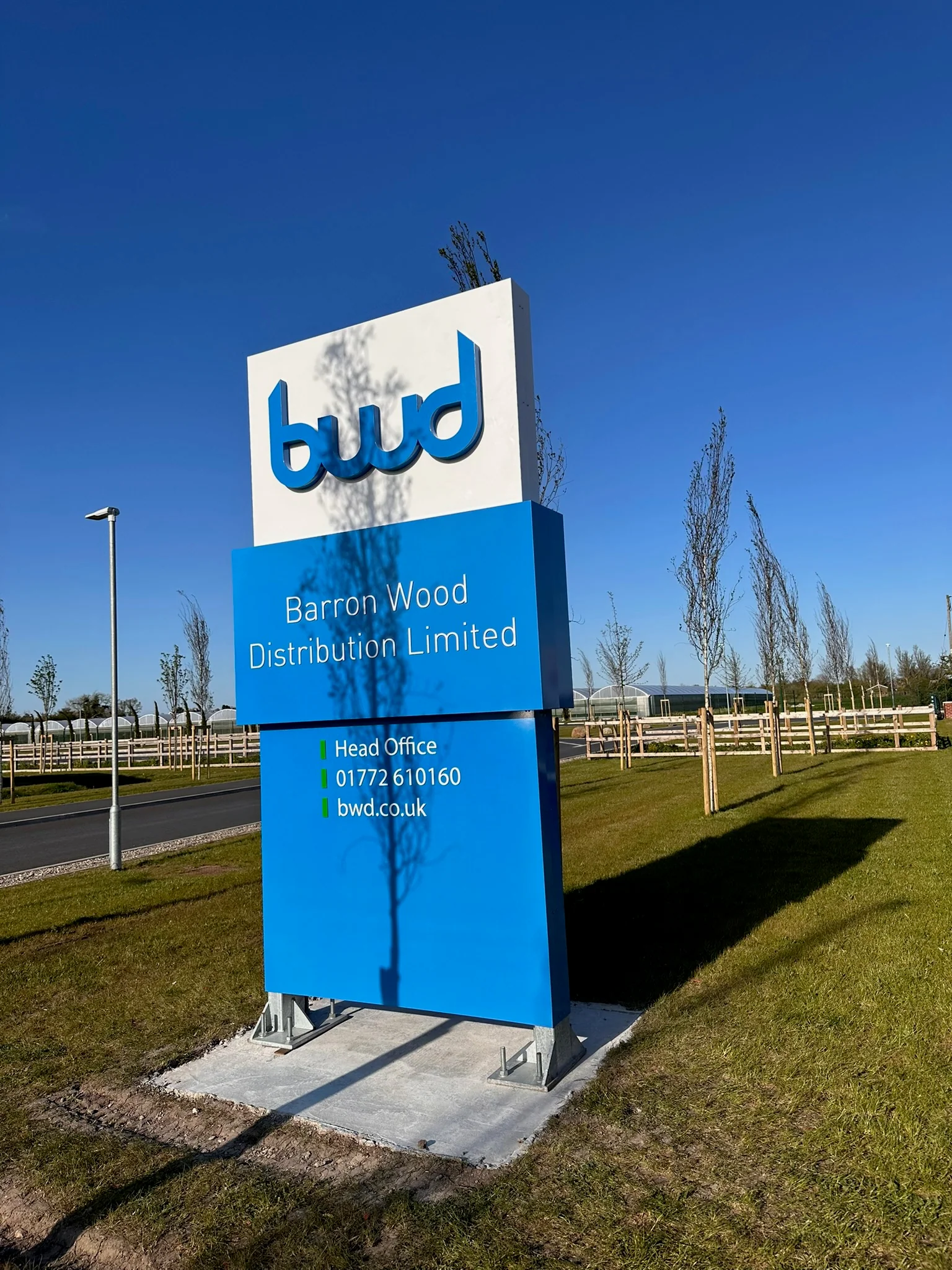

BWD — daylight view
Blue built-up lettering and matching sign panels give the totem a consistent identity.
In position

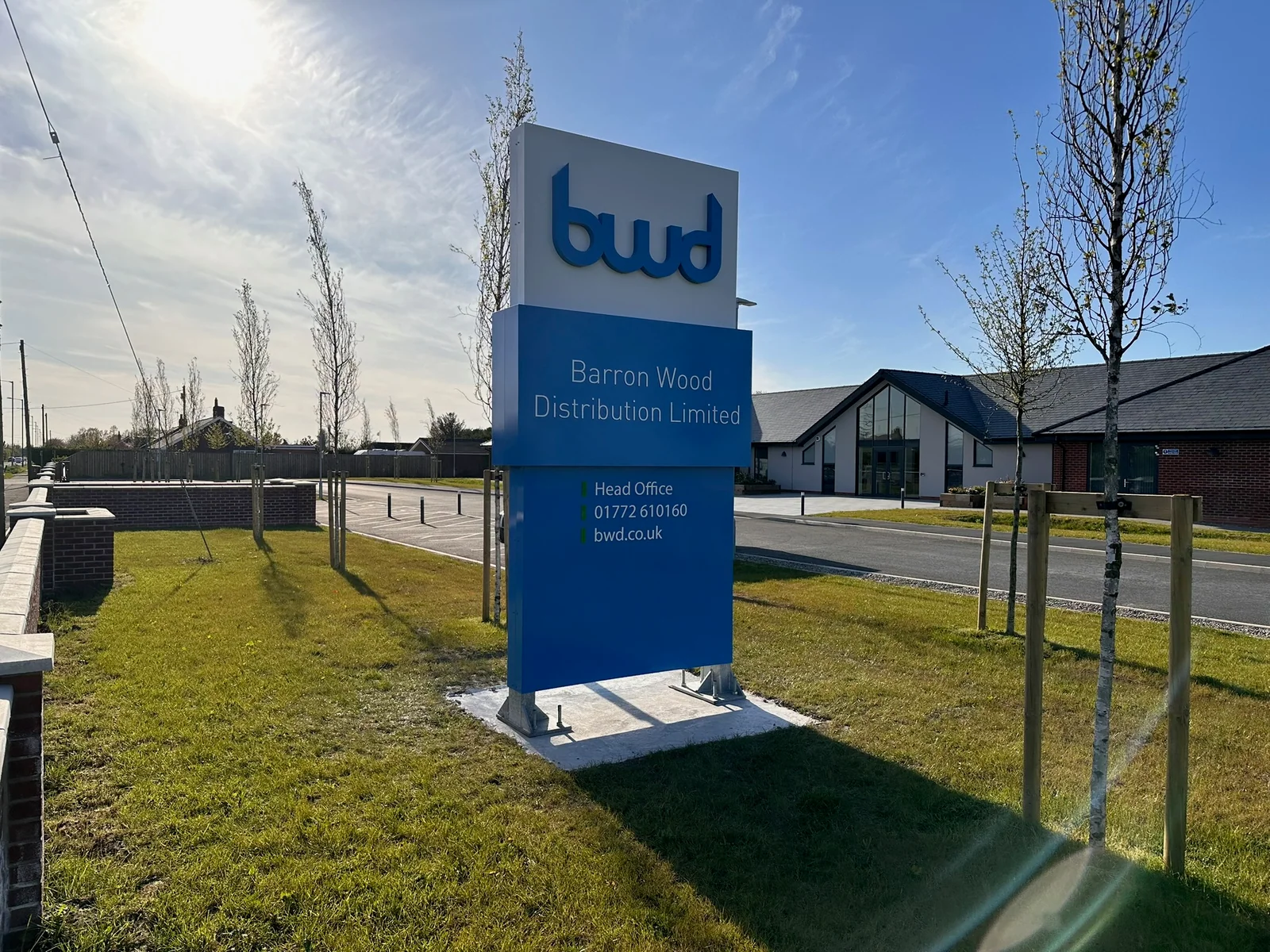

BWD — head office setting
The freestanding sign marks the approach to Barron Wood Distribution’s head office.
In position

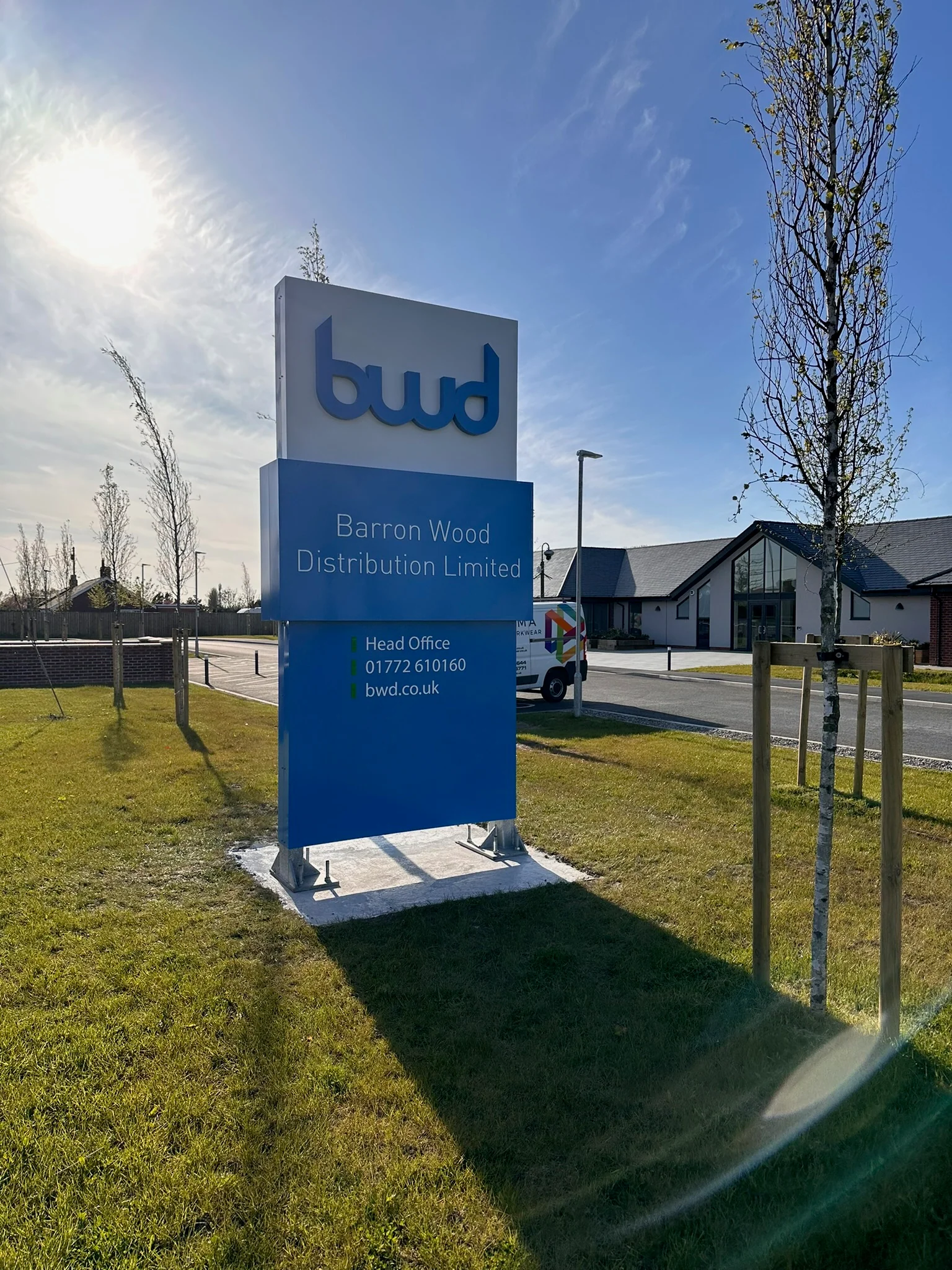

BWD — approach view
A wider view of the completed totem alongside the head office building.
Sign refurbishment
Southport College — an illuminated sign refurbished
Southport College’s existing illuminated sign was in poor condition. We took it apart, replaced all the internals and fitted a new back plate, then cleaned the letters and refitted the sign.
The original fittings had become rusty, so we replaced every fitting with stainless steel. The daylight and evening photographs show the refurbished lettering back on the building, with its illuminated outline visible after dark.
Daylight detail

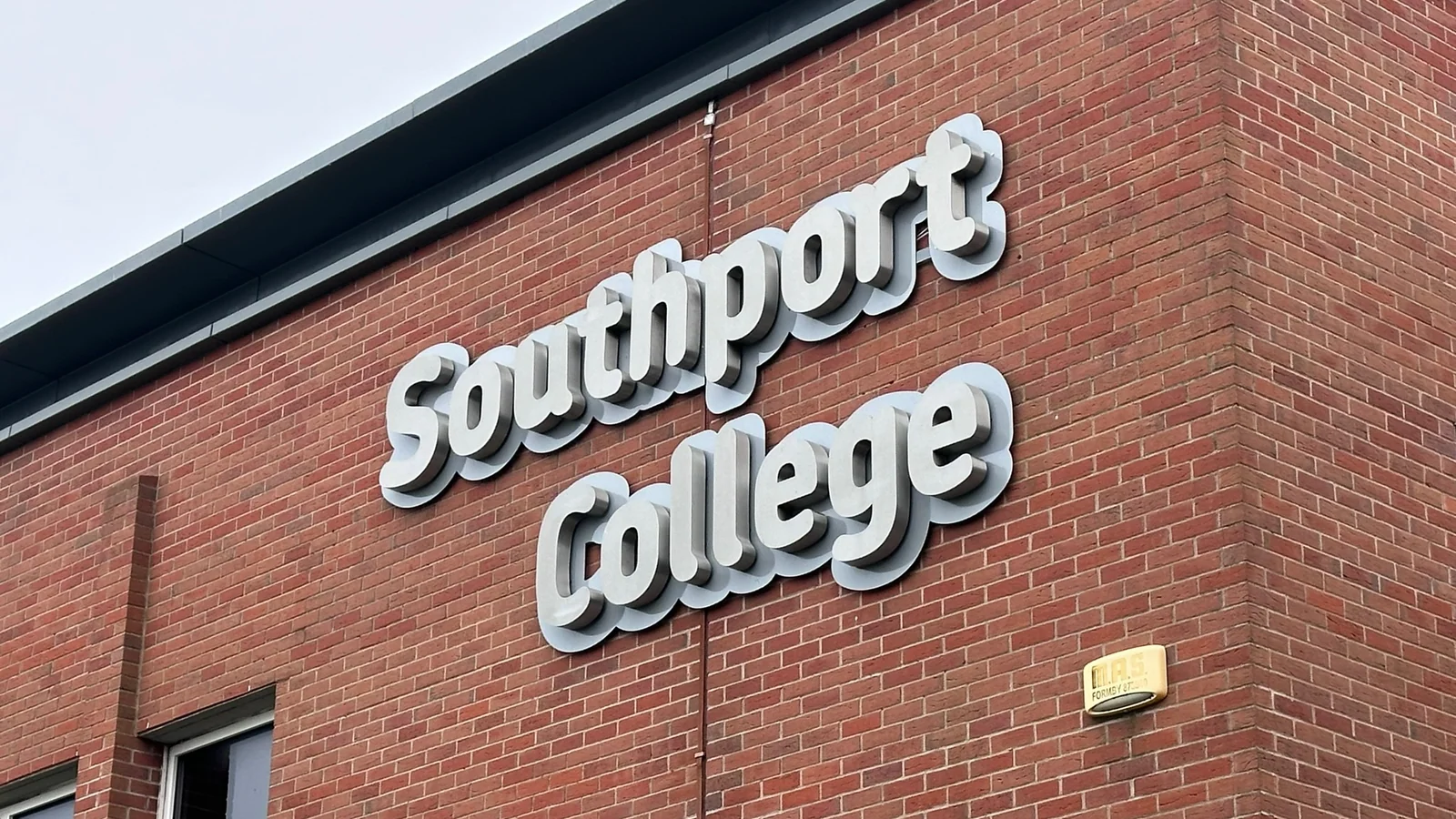

Southport College — depth in daylight
The cleaned and refitted letters show their depth against the new back plate in daylight.
Lighting detail
Southport College — illuminated outline
A closer evening view of the refurbished sign, with all-new internals and light around each letter.
See more Southport College views
Daylight detail

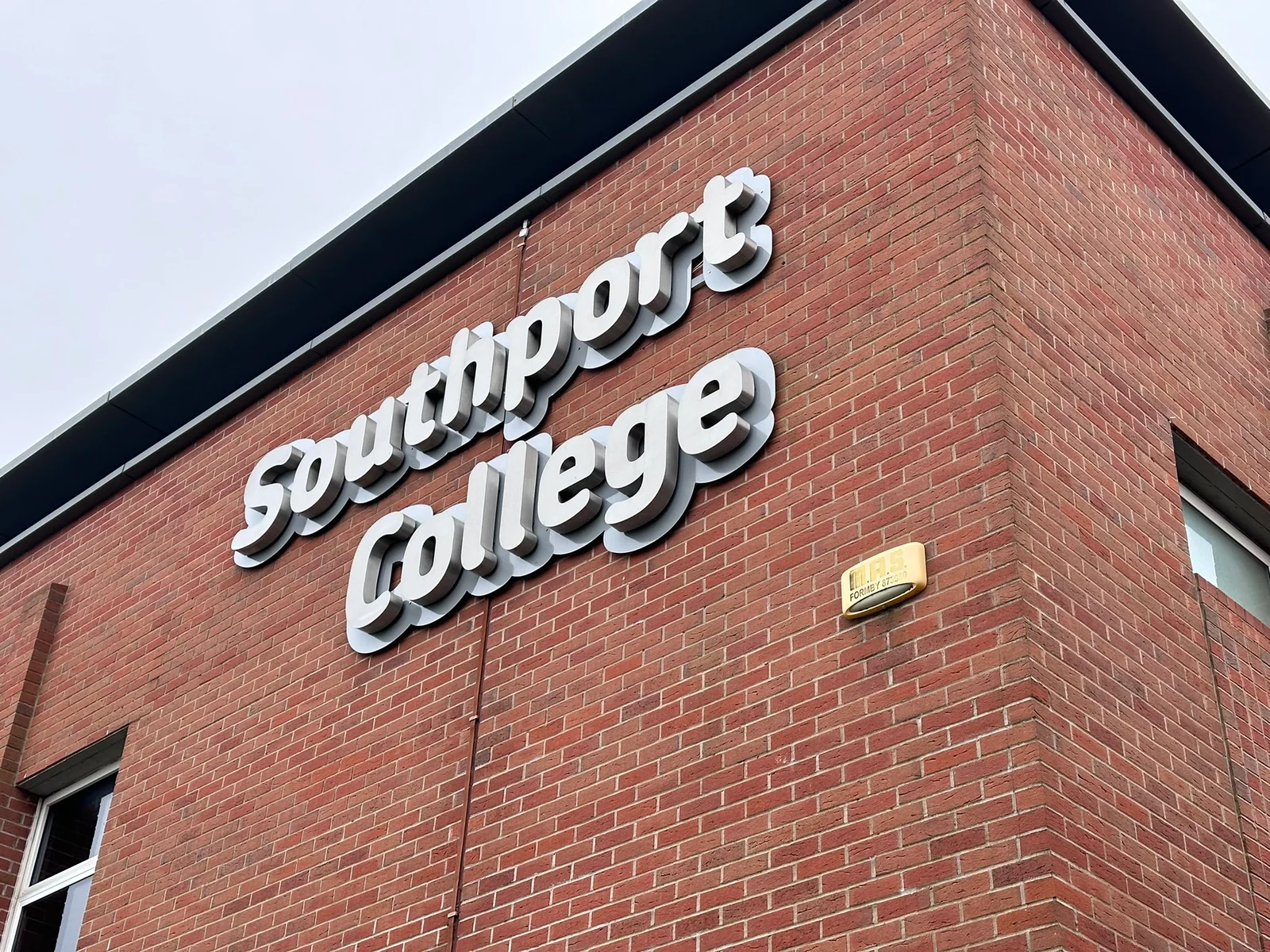

Southport College — angled view
The angled view shows the cleaned letters refitted to the refurbished sign on the brick wall.
Evening view

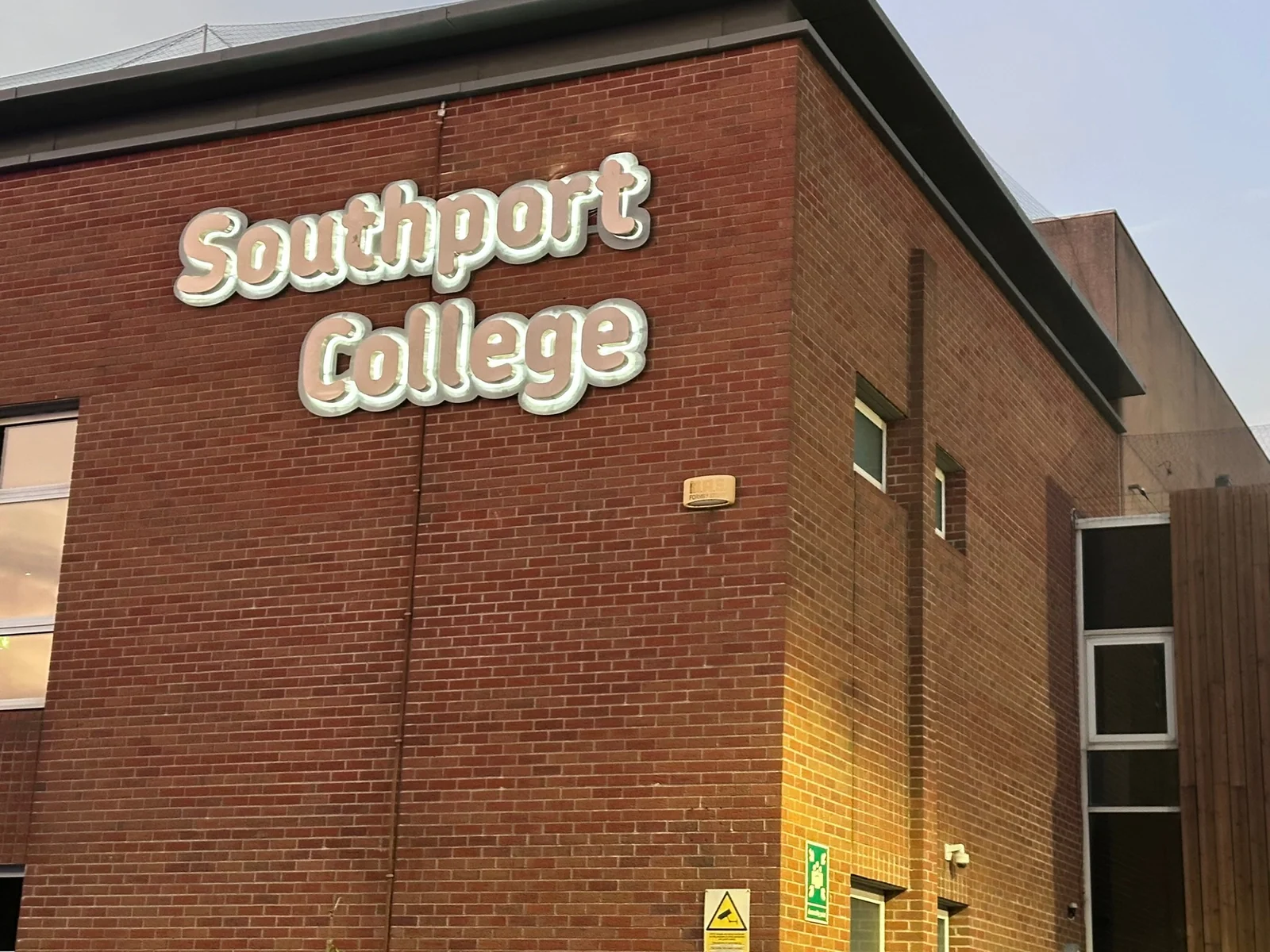

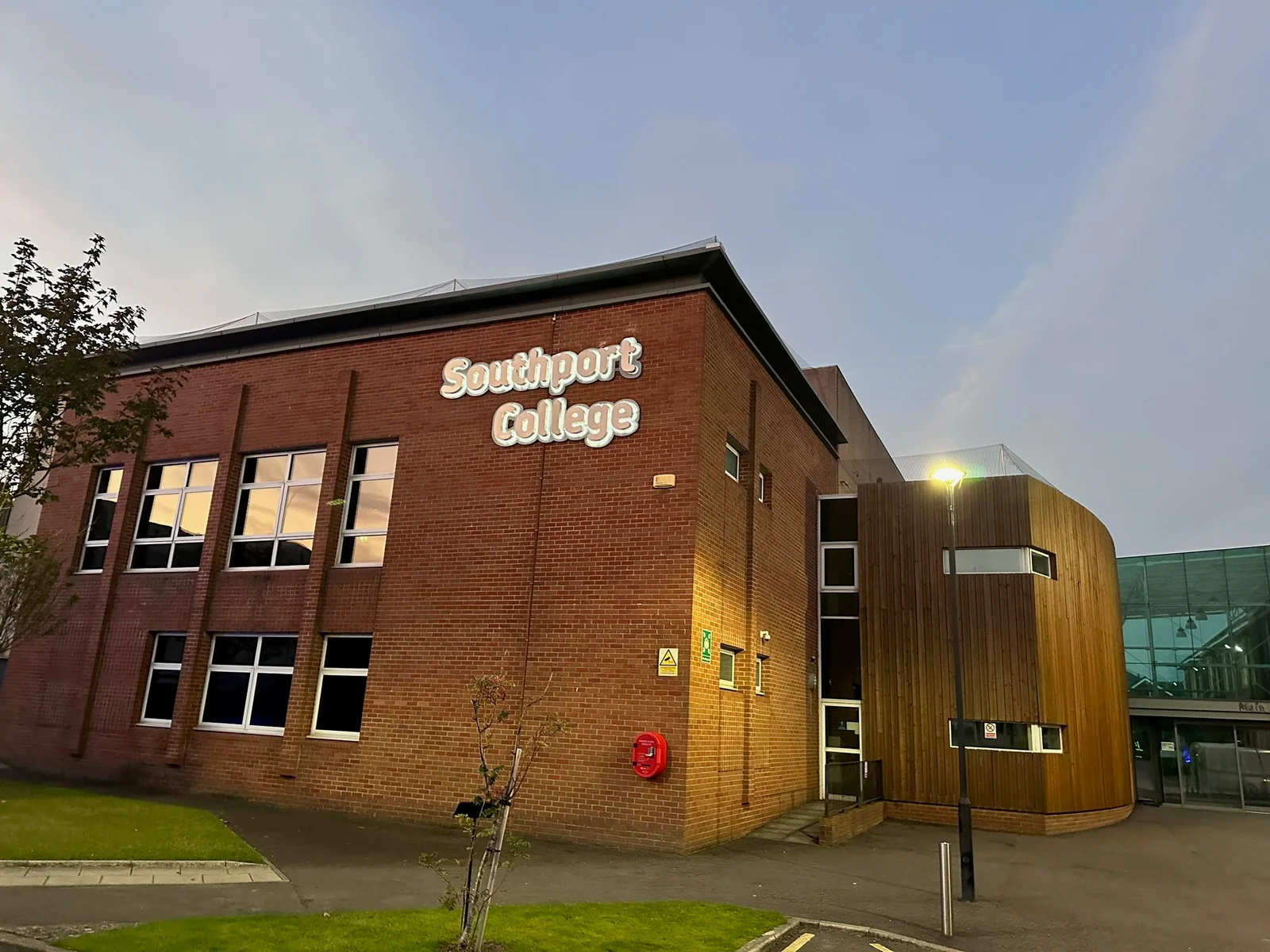

Southport College — at dusk
The illuminated outline makes the college name visible against the brick facade as daylight fades.
Evening view

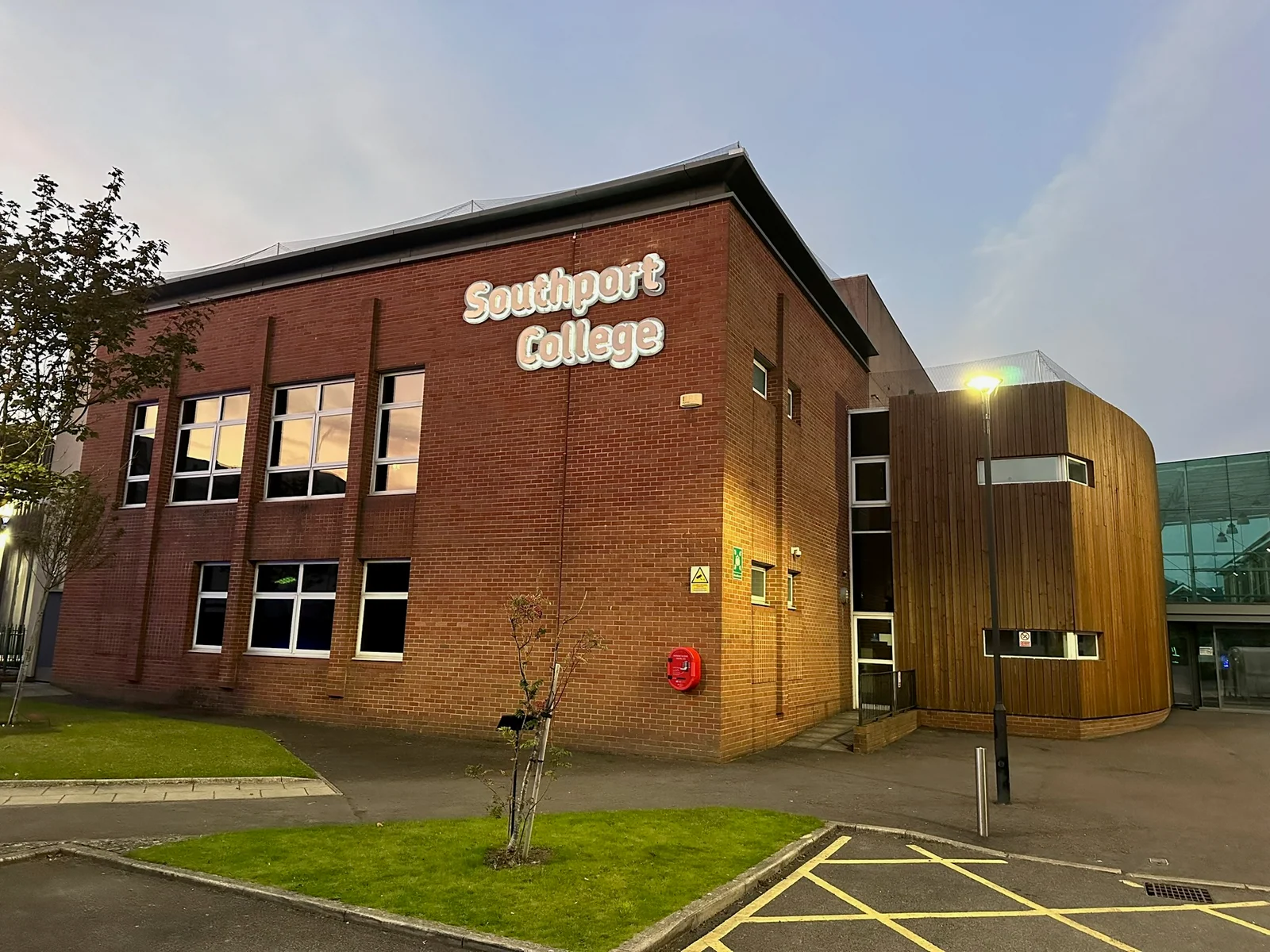

Southport College — building frontage
A wider evening view shows the refurbished Southport College sign back in place on the building.
Illuminated acrylic lettering
Bell’s Healthcare — routed solid acrylic
Bell’s Healthcare’s letters were made from solid acrylic, routed out from the back. We sealed the rear with a layer of acrylic to waterproof the letters, then faced them with coloured, light-transmitting acrylic Perspex suitable for illumination.
The night photographs show the blue letter faces and white glow around the lettering, with the illuminated Marksans logo beneath. A separate line of lettering completes the company identification.
Lighting detail
Bell’s Healthcare — light and colour
Coloured Perspex faces finish the routed solid acrylic letters, shown at night alongside the illuminated red Marksans logo.
Night view

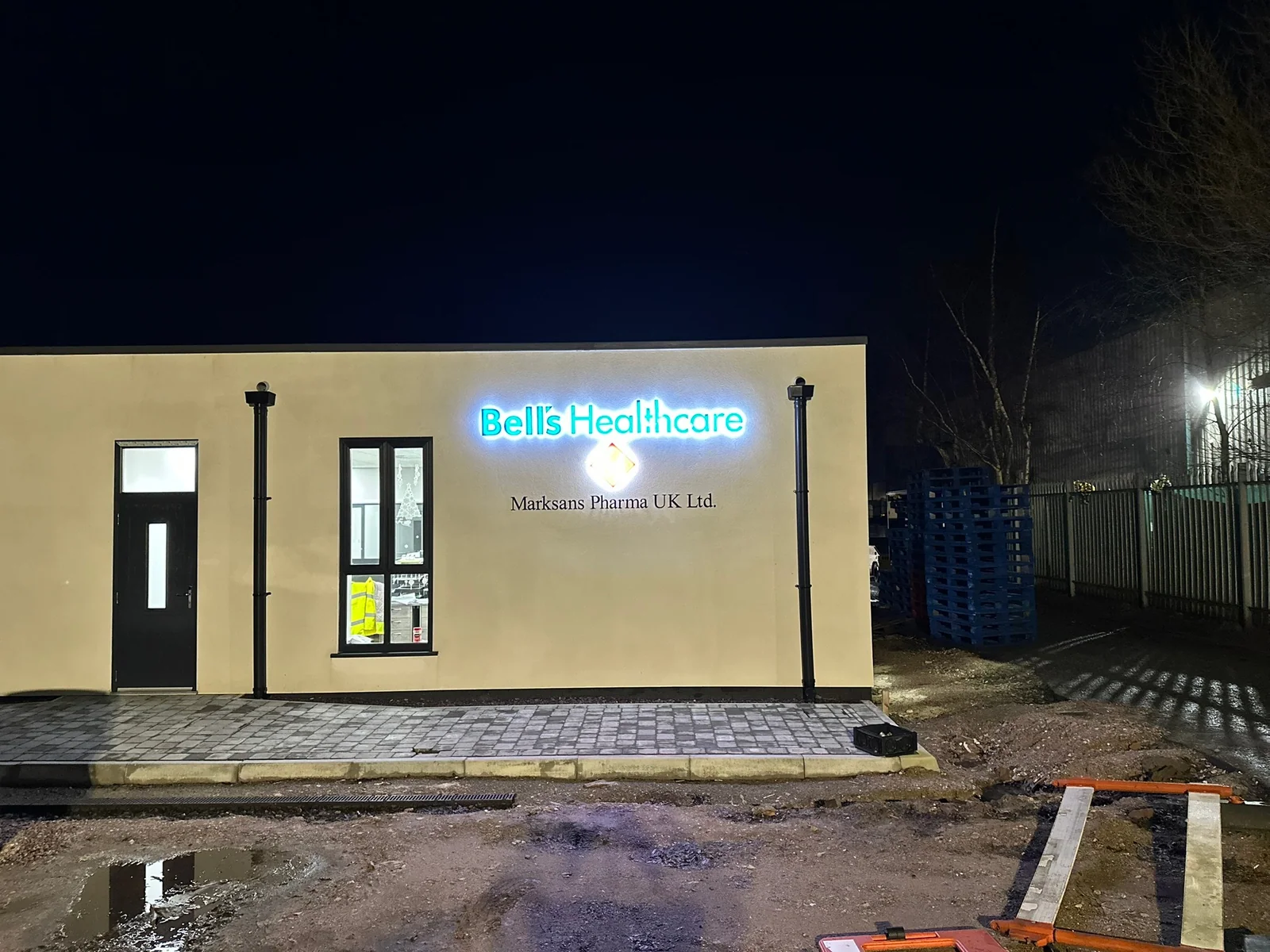

Bell’s Healthcare — exterior at night
The routed acrylic letters with coloured Perspex faces identify Bell’s Healthcare after dark, above the illuminated Marksans logo.
See more Bell’s Healthcare views
Night view

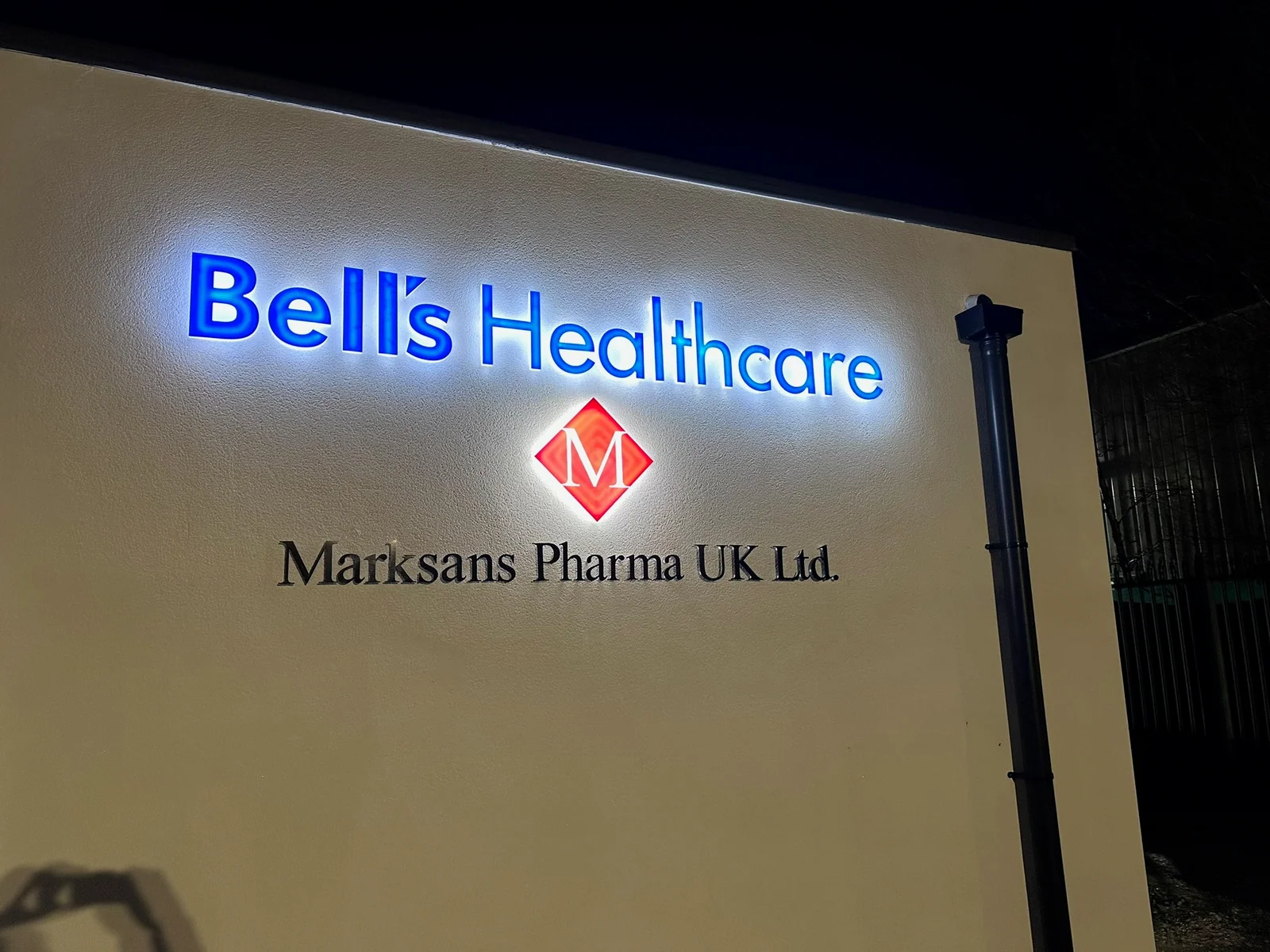

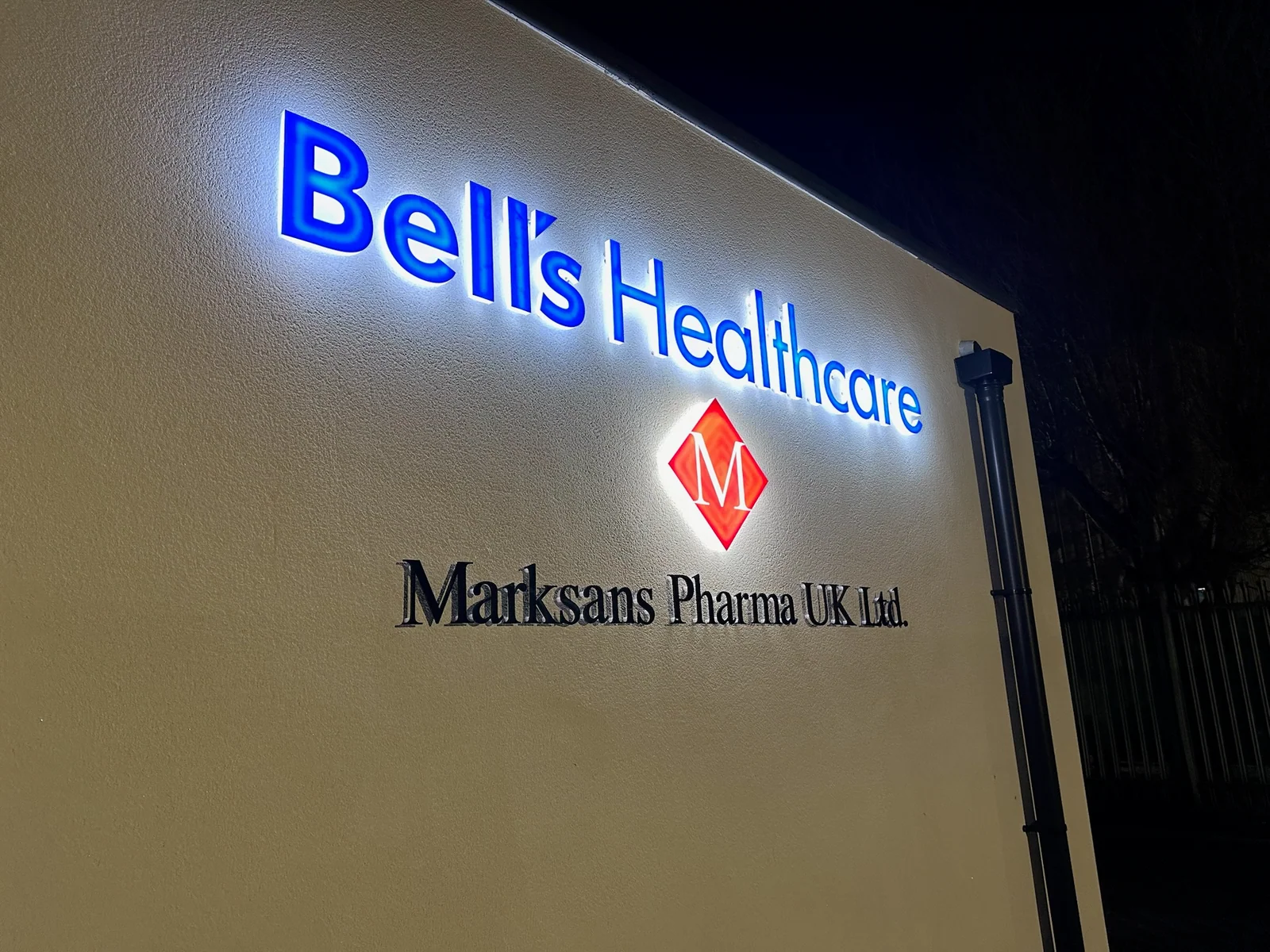

Bell’s Healthcare — angled view
The angle shows the raised lettering, light on the wall and separate Marksans Pharma UK Ltd. line beneath.
Lighting detail

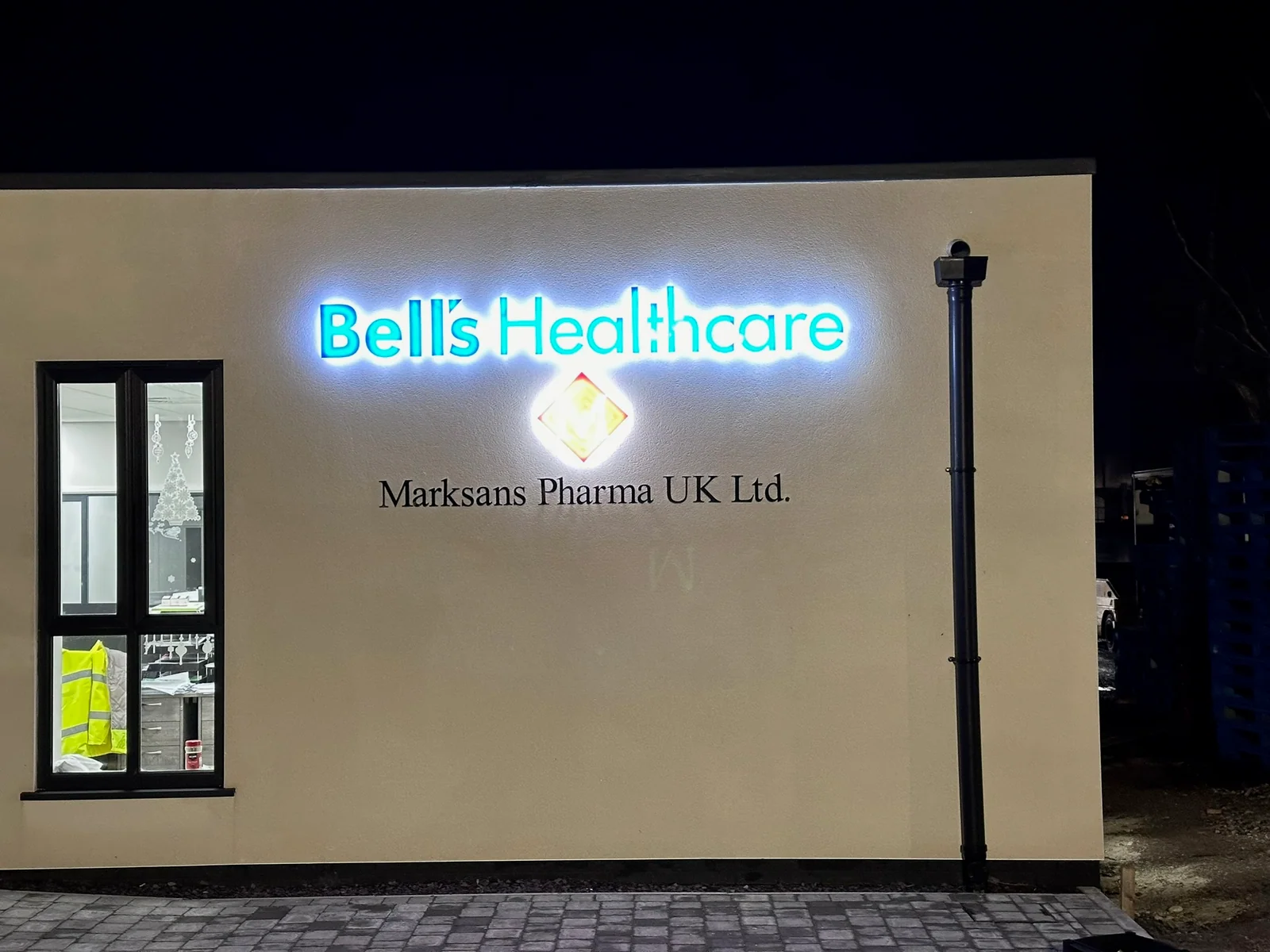

Bell’s Healthcare — front view
The routed solid acrylic letters have sealed acrylic backs and coloured Perspex faces; the front view shows a bright outline on the wall.
Routed 3D lettering
RA Bar — routed Foamex with painted faces
RA Bar’s three-dimensional letters were routed from Foamex and painted on the faces. Their gold-coloured finish sits against the warm fascia, with white light around the lettering defining the name after dark.
This project shows another way to make 3D lettering: routing the shape from solid material. The fitting photograph and completed evening view show the sign during installation and in use.
Installation

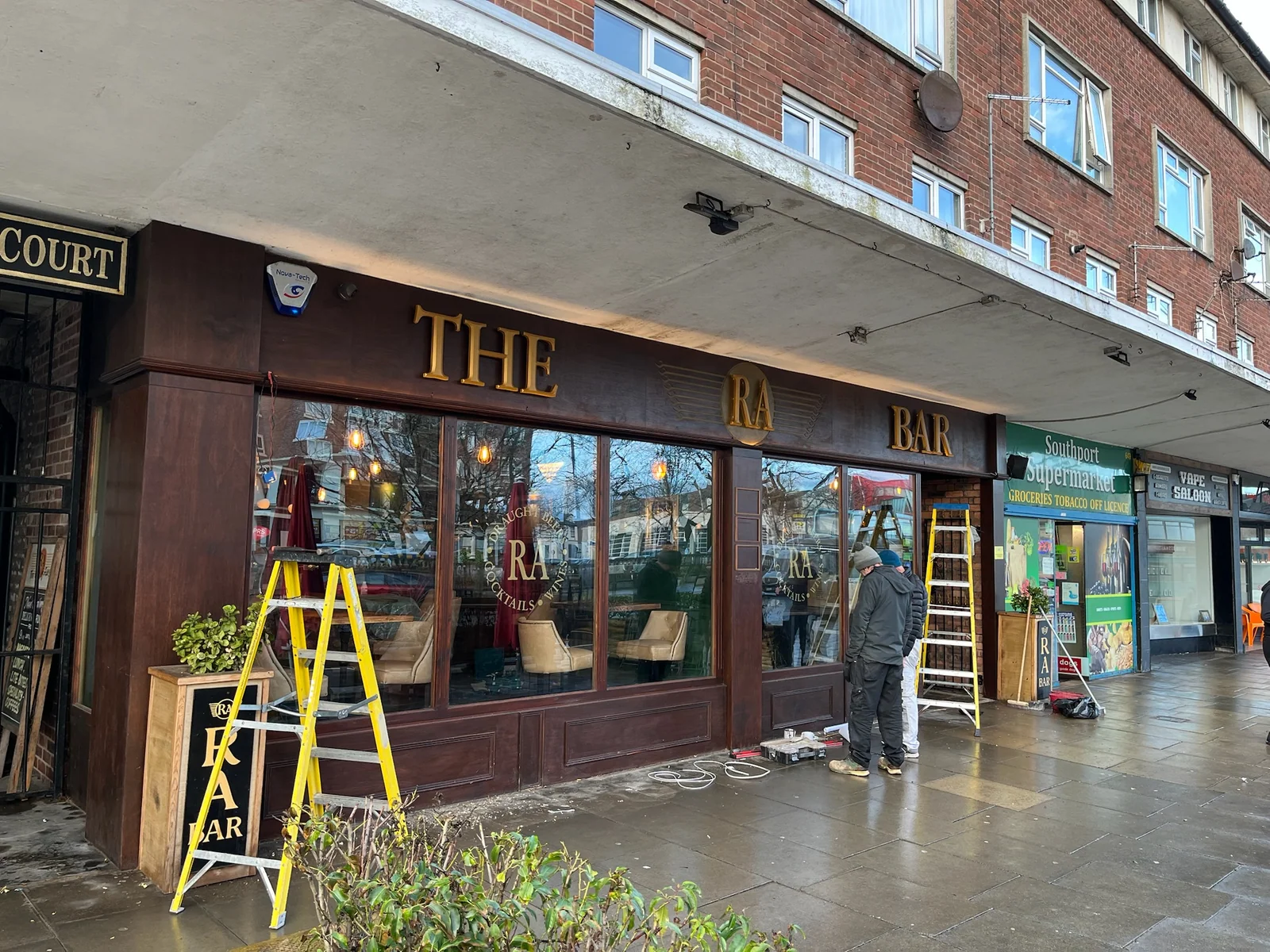

RA Bar — fitting in progress
A daytime installation view shows the routed Foamex letters with painted faces and the central RA emblem.
Completed sign

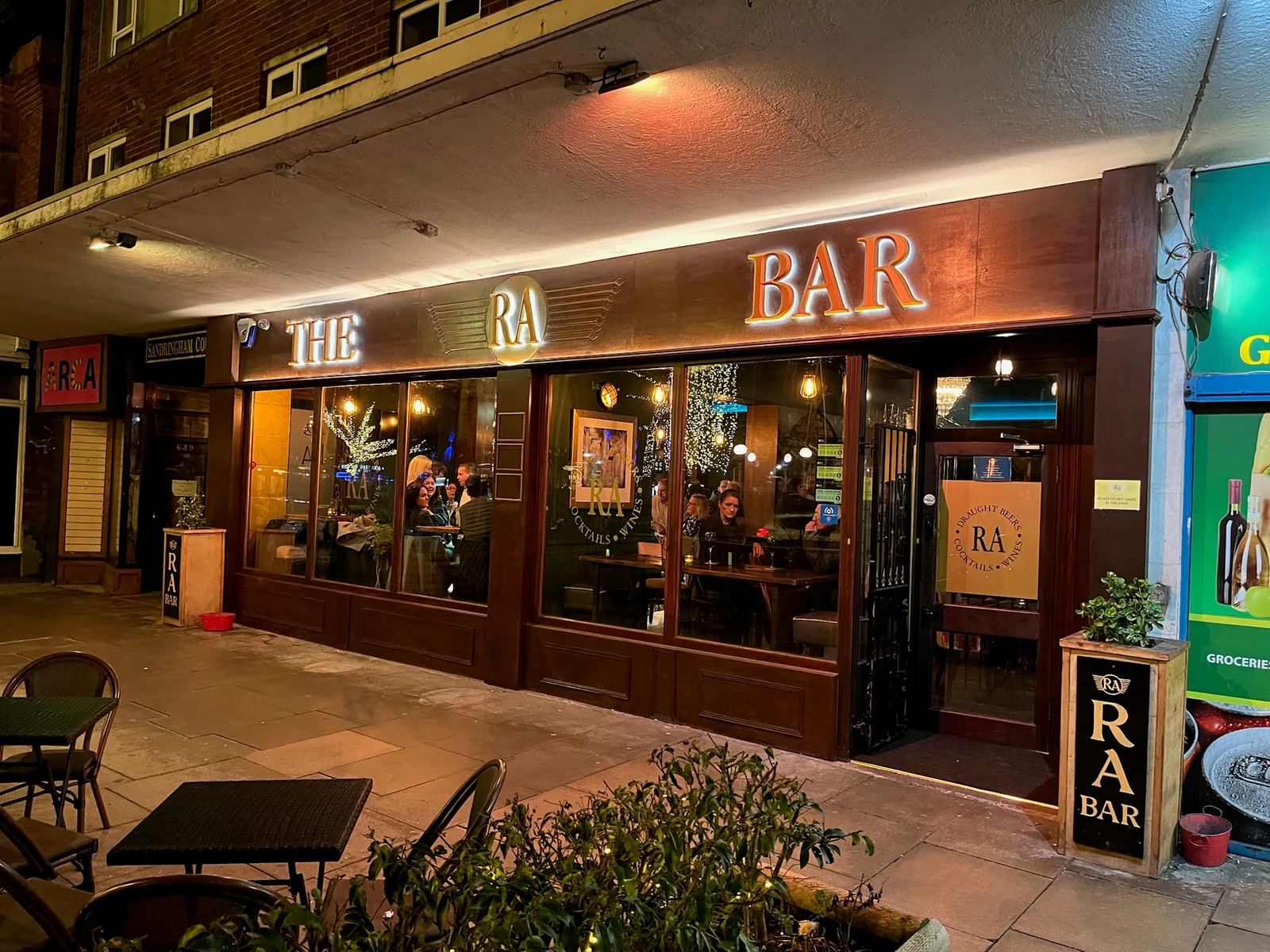

RA Bar — completed frontage
The completed frontage shows the painted faces of the routed Foamex letters, with white illumination around the lettering.
See more RA Bar views
Lighting detail

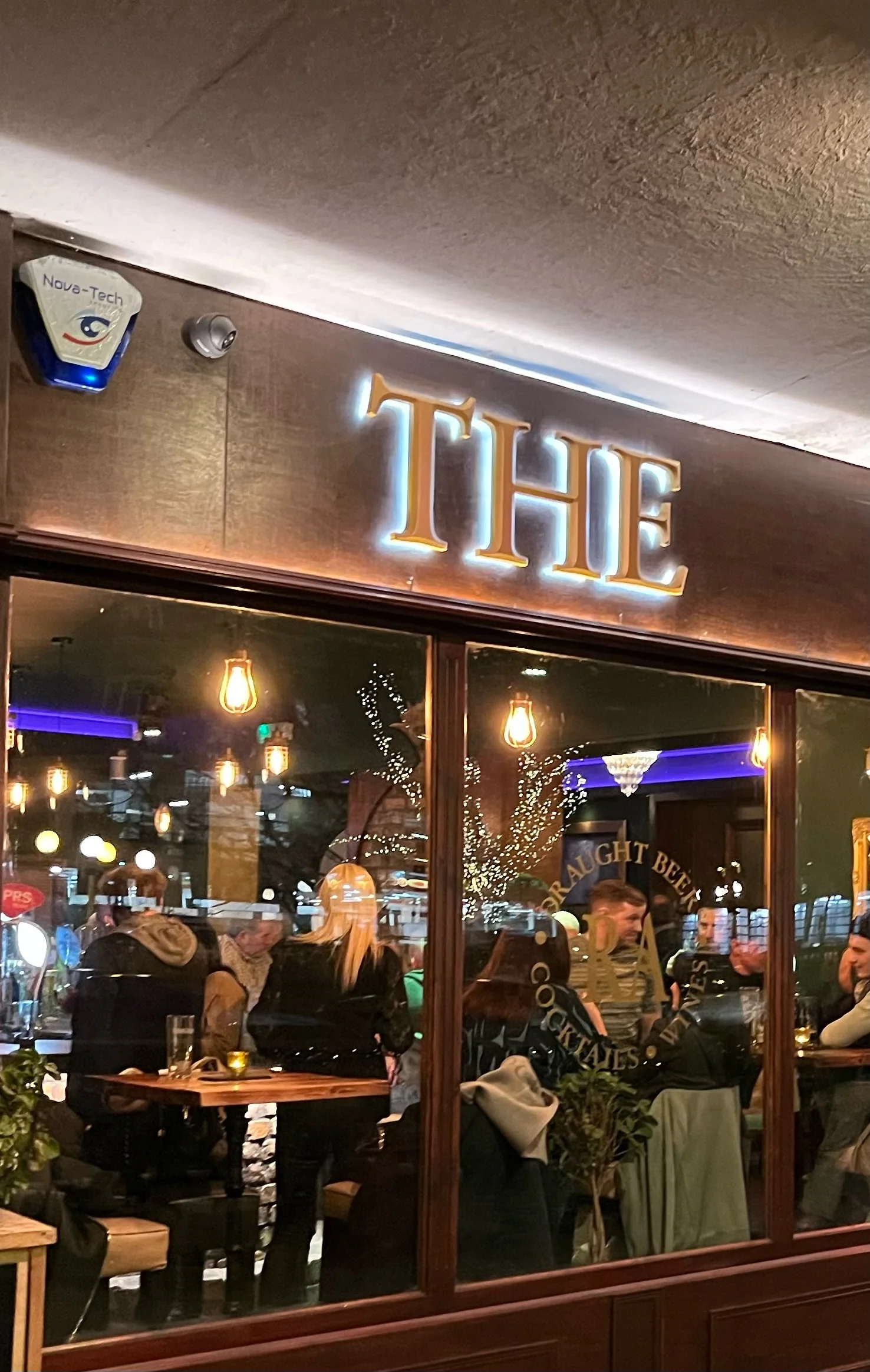

RA Bar — illuminated letter detail
The gold-coloured painted faces of the routed Foamex letters contrast with the white glow around the lettering.
A closer look at the construction
Inside the letter
The face gives the letter its shape. The return forms its depth. With illuminated lettering, the lighting and wiring are assembled inside before the sign is fitted. These workshop photographs show the details behind the finished effect.
Construction detail

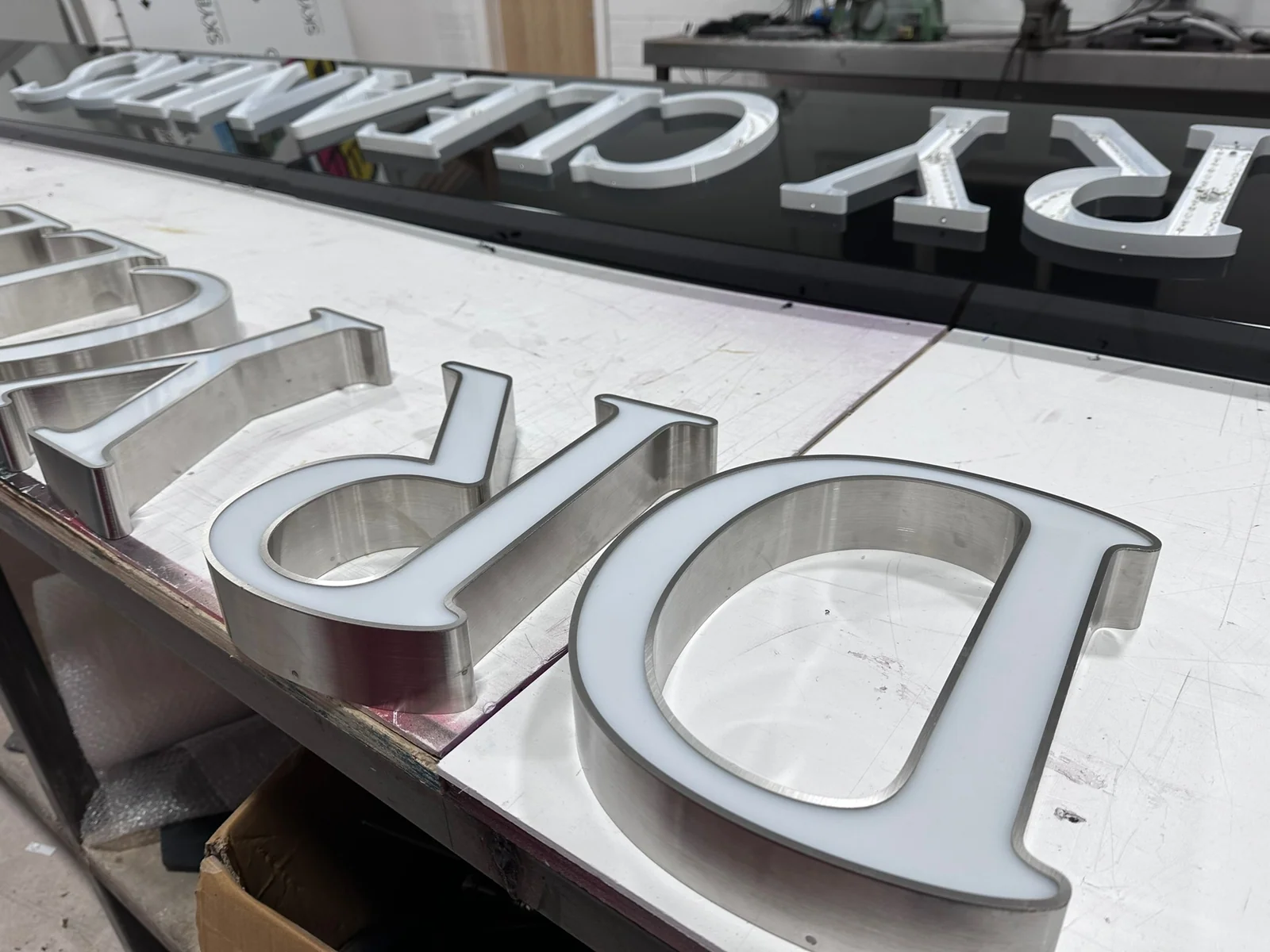

Built-up lettering — faces and returns
Metal rims surround the white translucent faces. The return forms the depth of each letter.
Workshop assembly

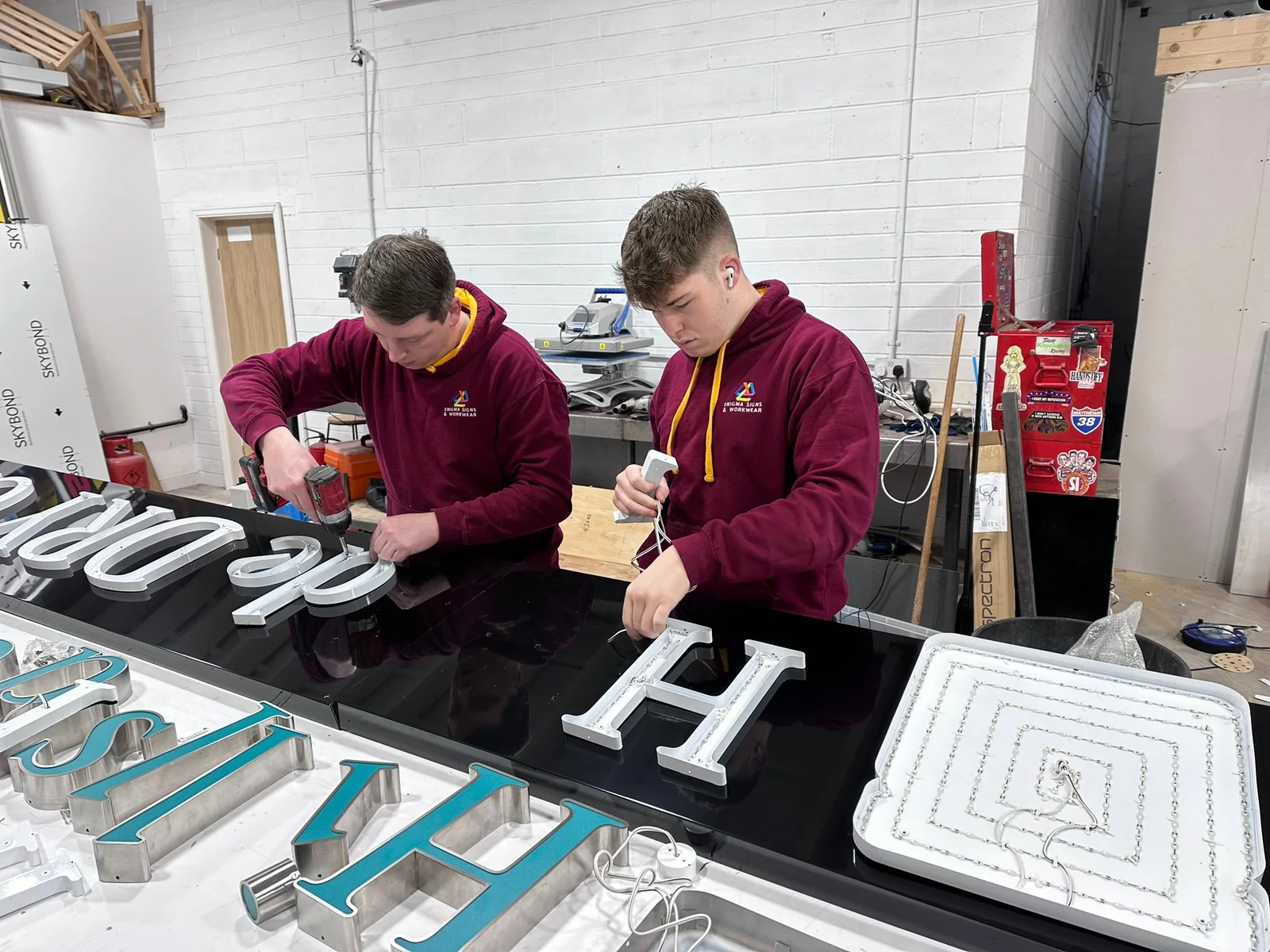

Built-up lettering — on the bench
The team assembles the letters and lighting on the sign panel before installation.
See the rim detail and LED assembly
Construction detail

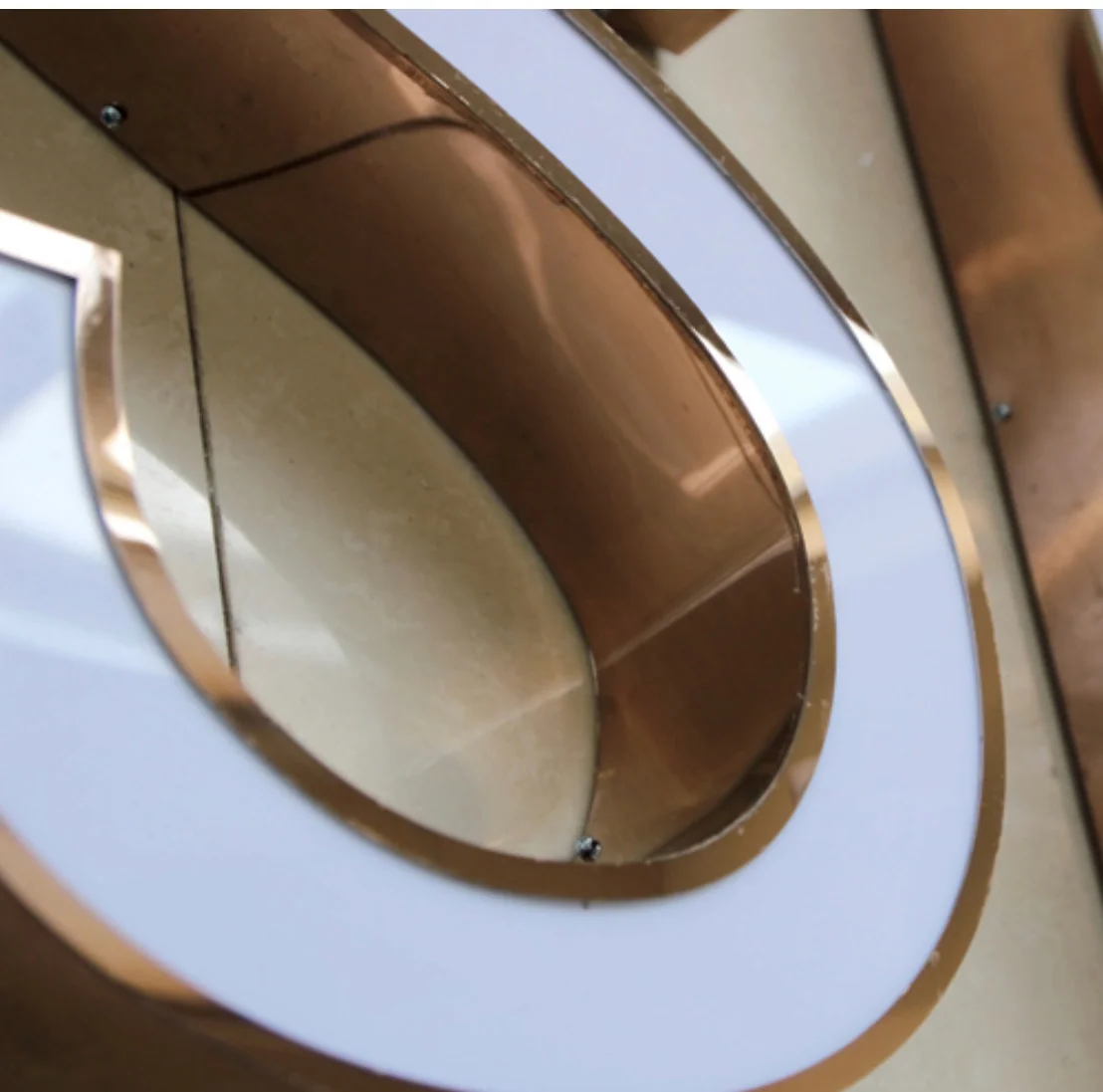

Rim and return — a closer look
A close view shows the narrow metal rim around a translucent letter face and the deeper metal return behind it.
Workshop assembly

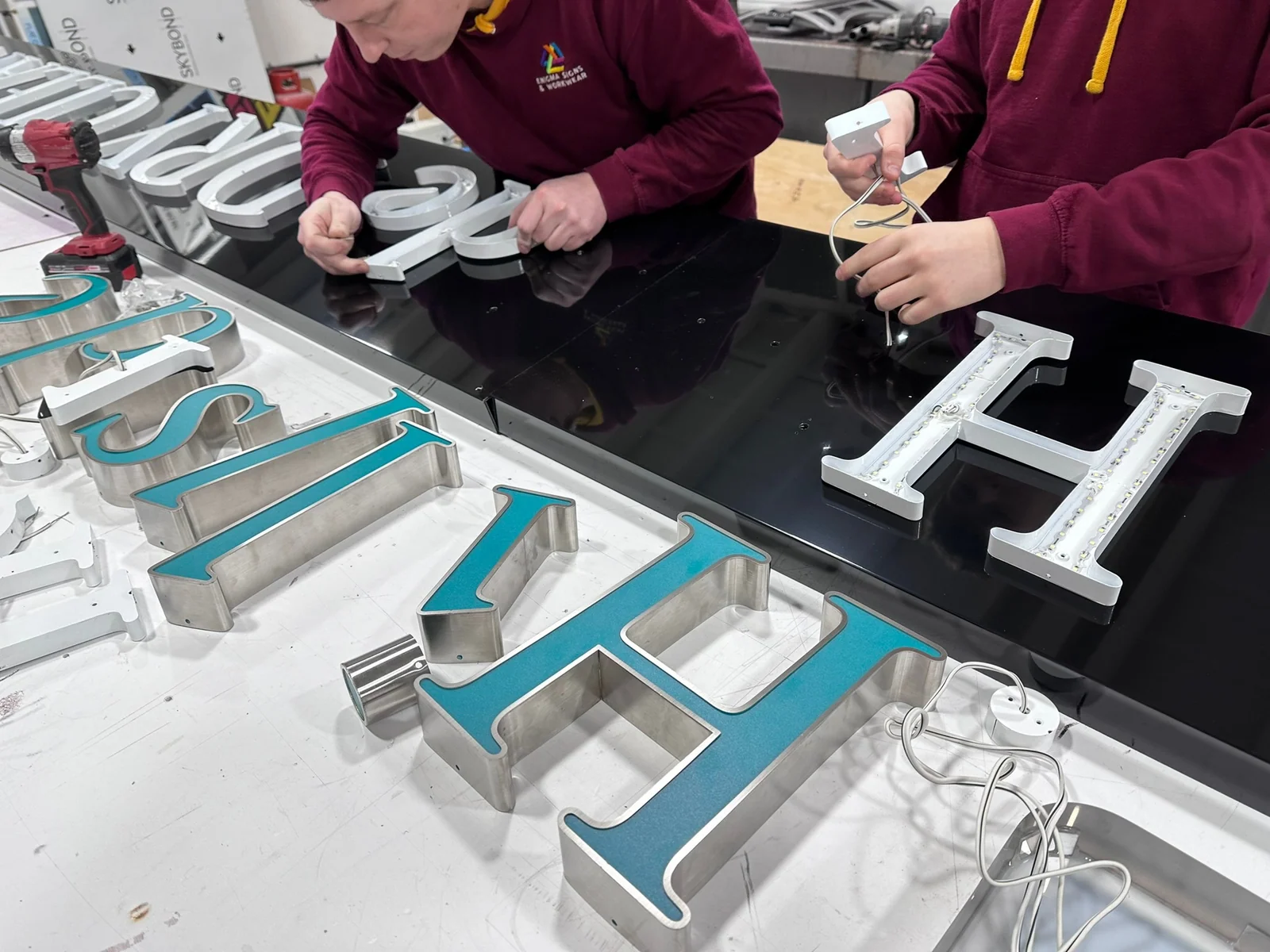

Built-up lettering — fitting the lighting
Open letter backs show the LED layout and wiring during assembly. Protective film remains on some of the letter faces.
Flat-cut letters can also stand away from the wall on locators. Built-up letters get their depth from the construction of the letter itself. Explore our flat-cut lettering options ↗
Let’s plan your lettering
Your name. In three dimensions.
Start with your logo, an idea or a photograph of the location. Our Southport team brings design, manufacture and installation together to help you choose a sign that works in its setting.
Useful details for a quote
- Your wording or logo artwork
- Approximate letter height or overall sign size
- A photograph of the wall, fascia or totem
- The finish or colour you have in mind
- Whether you want illumination, and the effect you like
- The installation address, access and preferred timing
For illuminated signs, include any information you have about the power supply.
A few useful answers
Built-up letter sign questions
Are channel letters and built-up letters the same thing?
The terms are often used for the same type of fabricated, three-dimensional lettering. In the UK, “3D letters” and “built-up letters” are common descriptions. The construction and lighting details still need to be specified.
What are rim and return letters?
The rim is the narrow edge around the letter face. The return is the deeper side forming the letter’s depth. A translucent face can allow internal lighting to shine through, as shown in our Apiary photographs.
Do 3D letters have to be illuminated?
No. Non-illuminated lettering uses its depth, finish and colour to make an impression. The powder-coated aluminium BWD letters on the totem are a non-illuminated example.
What is the difference between face and halo illumination?
Face illumination shines through the front of the letter. Halo illumination directs light behind it onto the wall or backing surface, producing a glow around its outline.
Are built-up letters the same as flat-cut letters on locators?
Flat-cut letters are cut from sheet material and can be spaced off a wall on locators. Built-up letters have a face and deeper returns forming the body of the letter. The right choice depends on the size, finish and effect you want.
How much do built-up letters cost?
Each project is quoted to suit its size, construction, finish, lighting and installation requirements. Send your artwork, approximate dimensions and a photograph of the location so we can discuss the options.
Can the face and halo both be illuminated?
Some letter constructions can combine a lit face with light behind the letter. This needs to be designed as a complete construction; it is not a feature of every illuminated letter. Tell us which effect you want so we can discuss a suitable specification.
Can you use my logo or script lettering?
Send your logo or wording for us to review. Fine strokes, tight curves and small details affect fabrication and the space available for lighting. Our Apiary photographs show a flowing script made in rim and return construction.
Can built-up letters be used outside?
Yes, when the materials, lighting and fixings are specified for the location. Building facades, shopfronts and totems have different mounting and exposure conditions. Include the address and a site photograph so we can assess your project.
How long will manufacture and installation take?
Timing depends on the design, materials, finish, approvals and installation requirements. Include your preferred completion date when requesting a quote; we will discuss a programme for your particular sign.
How do I look after illuminated lettering?
Cleaning and servicing depend on the face material, coating and construction. Ask for care guidance for your finished sign. Planning access to the letters and power equipment makes future maintenance easier.
